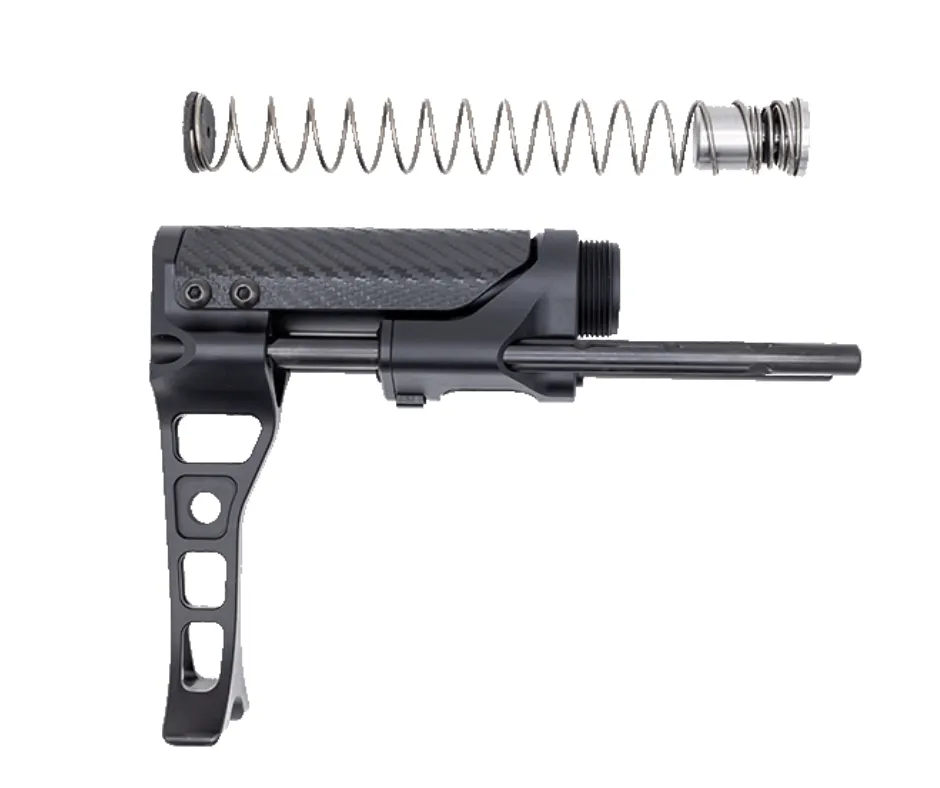

BAD-CSS VERT® STOCK SYSTEM
FEATURES:
M16 BCG Compatible No Proprietary Bolt Carrier Group Required! -
9MM Version Compatible with most 9MM blow-back Bolt Carrier Groups (i.e. QC10, NFA, FAXON, etc.)
Continuous Cheek Rest for Stable Shooting
Interchangeable Cheek Rest (different colors/patterns, coming soon)
Ultra Compact Buffer & Buffer Spring
Patented, Recoil Reducing, Dual Spring Buffer Design
Fully Collapsed Length = 4.75in (Not longer 5.5in+/- PDW Style Stocks)
Fully Extended Length = 8.75in
(4) Locking Stock Positions
(2) QD Sling Swivel Points
High Impact Resistant S7 Tool Steel Guide Rods
Internal Guide Bushings for Buttery Smooth Operation & Keeps Out Debris
Intelligent Guide Rod Lock Design
Fast Stock Deployment
Continuous Cheek Rest
Stock Locks Both Directions
Precision CNC from Aircraft Grade Aluminum & S7 Tool Steel
MilSpec Type III Class 2 Hard Anodized Black
(2) Built-In Non-Rotating QD Points
Lightweight 19.5 Ounces (Complete Stock System with Buffer & Springs)
Billet 7075T6 Aluminum CNC Machined Butt Stock
Stock System Weight 19.5oz
Buffer Weight = 5.56 3.9 oz / 9MM 5.7oz
Made in the USA
U.S. Patents #9341437, #9395148, Other Patents Pending
NOTES:
The system should be configured, installed and function checked by a qualified gunsmith for reliable and safe operation.
VERT® buffer system is designed for 5.56/.223 direct gas impingement system.
Will also work on 300BLK DI system as well but must have appropriate gas port size.
Use of NICKEL BORON Coated Bolt Carrier may cause damage to the buffer system due to the I.D. (Inside Diameter) of the BCG being undersized.
Inside, the rear cavity of the bolt carrier must be .625in diameter x .625in deep minimum to clear the buffer. Damage may occur if proper clearance isn't met.
The BAD-PDW™, BAD-CSS™ and Ultra Compact Pistol SABERTUBE® using the patented VERT® buffer system have been tested on industry standard, factory Colt 6920 (direct impingement) to be a drop-in stock system using factory 5.56/.223 ammunition.
However, due to the limitless possible configurations of the AR-15 rifle system from aftermarket components and the variety of ammunition used, the rifle may be under gassed for the VERT® buffer system. Some adjustments or modification may be required.
The most common adjustment if the bolt fails to lock back on the last round is to open the barrel gas port diameter to increase the gas into the system to fully cycle and compress the inner buffer spring for reliable operation. An adjustable gas block, adjustable gas key or adjustable bolt carrier is recommended for tuning the gas system.
The VERT® buffer system has been tested successfully with 300BLK direct impingement AR platforms in semi-auto or full-auto fire. However, the rifle system must be configured properly. 300BLK supersonic and 300BLK subsonic ammunition have drastically different characteristics.
They will also perform differently suppressed and unsuppressed. The rifle may be tuned to function on one end of the spectrum or the other. Please do not expect the stock to run on the same rifle configuration between shooting suppressed vs. unsuppressed and supersonic vs. subsonic.
